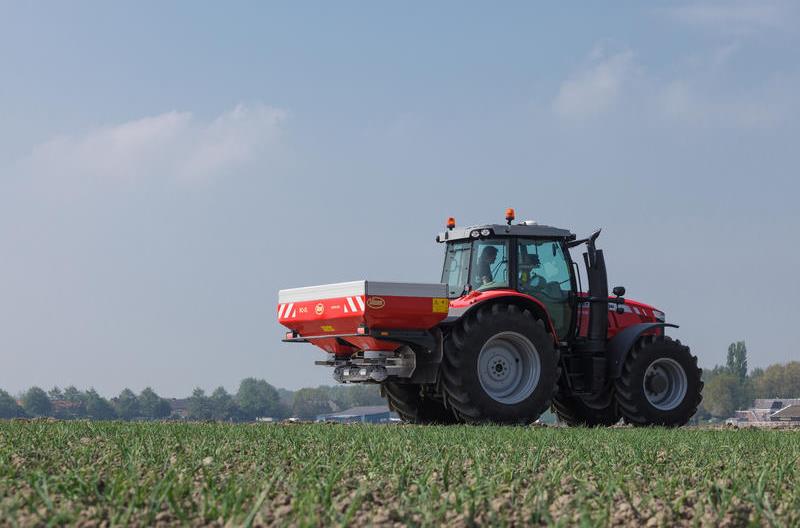

RO-XL1500 - The High Capacity Model

The RO-XL is the high capacity model of the RotaFlow range. The heavy duty construction of the RO-XL makes it possible to carry up a maximum of 3.450 or 3.900 litres of fertiliser with 3 extension rims. Easy setting and adjustment can be done with the FlowPilot on each spreading disc. An innovative drive line to each disc ensures gentle agitation due to the “slow rotating” agitator system, which runs at 15% of the spreading disc speed. Both discs can b eshut off independently to spread half the working width, essential for preventing lodging in tapering headlands.

Technical Specifications

RO-XL 1500
Model RO-C700 RO-M 1100 RO-XL 1500 RO-XL EDW 1500
Hopper capacity (ltr) 700 1100 1500 1500
Filling height (cm) 96 100 110 110
Width (cm) 154 220 275 275
Filling width (cm) 148 214 269 269
Empty weight (kg) 250 325 495 665
Spread width (m) 9-18 10-24 12-54* 12-54
Output (kg/min) 10-230 10-320 10-320 10-320

* Depending on tertiliser type and type of vanes.
