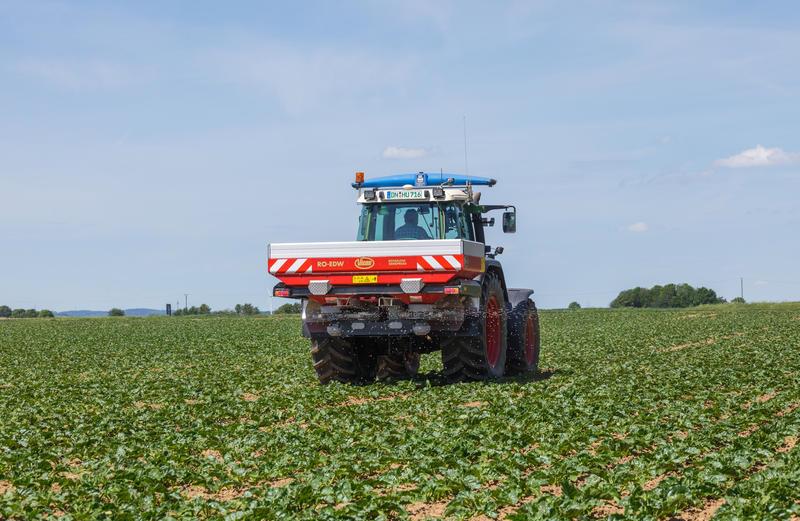

RO-EDW 1500 - High Tech Weighing with High Capacity

The RO-EDW is the top of the weighing range model. This ISOBUS 11783 compatible weighing spreader is equipped with an unique reference sensor. The FlowPilot dashboard on each spreading disc ensures simple and quick setting or adjustment. Different hopper capacities are available: two different basic hoppers of 1.500 and 1.875 litres and they can be increased with maximal 3 hopper extensions up to 3.450 and 3.900 litre capacity! Working widths from 12 up to 45m are possible. The RO-EDW can be operated with the IsoMatch Tellus, IsoMatch Tellus GO or any ISOBUS compatible tractor terminal.

Technical Specifications

RO-XL EDW 1500
Model RO-C700 RO-M 1100 RO-XL 1500 RO-XL EDW 1500
Hopper capacity (ltr) 700 1100 1500 1500
Filling height (cm) 96 100 110 110
Width (cm) 154 220 275 275
Filling width (cm) 148 214 269 269
Empty weight (kg) 250 325 495 665
Spread width (m) 9-18 10-24 12-54* 12-54
Output (kg/min) 10-230 10-320 10-320 10-320

* Depending on tertiliser type and type of vanes.
