VICON MACHINERY NEW ZEALAND

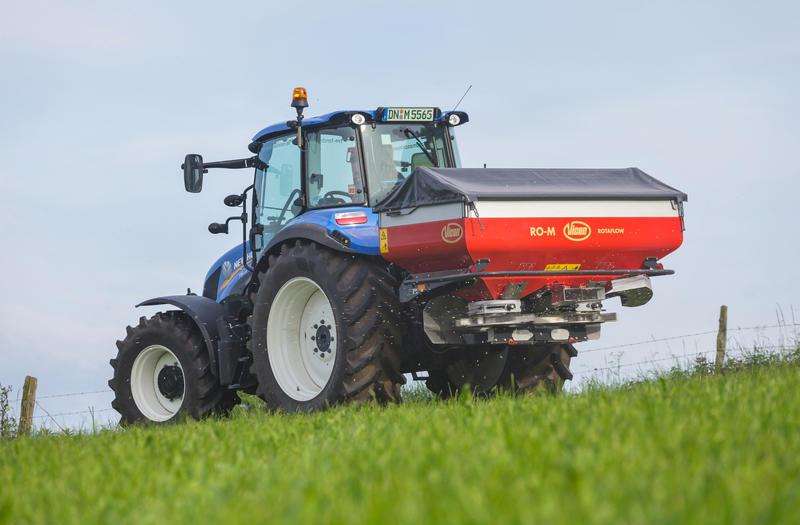

RO-M1100

The RO-M is the perfect spreader for the medium segment of farms! Each spreading disc has 8 vanes and their length determines the working width of the machine. These 8 vanes contribute to the highly accurate spread pattern across the complete working widths reaching from 10 up to 28 metres. With the easy to assemble aluminium extension rims the basic hopper capacity of 1100 litres can be increased up to 1550 or 2000 litres.



Technical Specifications

RO-M 1100
Model RO-C700 RO-M 1100 RO-XL 1500 RO-XL EDW 1500
Hopper capacity (ltr) 700 1100 1500 1500
Filling height (cm) 96 100 110 110
Width (cm) 154 220 275 275
Filling width (cm) 148 214 269 269
Empty weight (kg) 250 325 495 665
Spread width (m) 9-18 10-24 12-54* 12-54
Output (kg/min) 10-230 10-320 10-320 10-320

* Depending on tertiliser type and type of vanes.
