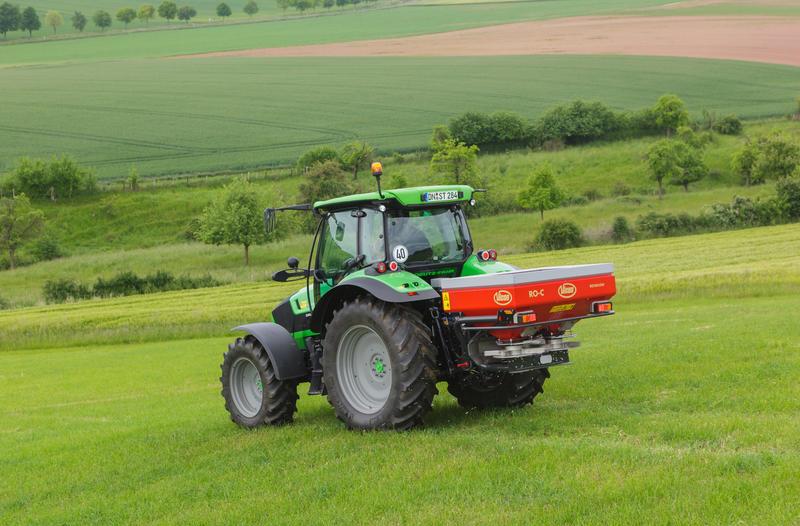

RotaFlow RO-C

Compact and Complete

The RO-C is controlled either manually or hydraulically. It is the most compact spreader in the range, but features all elements of the RotaFlow spreader line.
The working width is determined by the vane length. The 4 vanes can be detached easily, also for a static calibration test. Application rate adjustment from the calibration position is easily accessible.

Standard features include:

  • All vanes for 9-18 metres
  • Overload clutch
  • Stainless steel hose connections
  • Robust steel sieves
  • Right hand spreading disc can be shutt-off
  • Grading box to test fertiliser quality

Optional:

  • Fine application kit and LED lighting set



Technical Specifications

RO-700C
Model RO-C700 RO-M 1100 RO-XL 1500 RO-XL EDW 1500
Hopper capacity (ltr) 700 1100 1500 1500
Filling height (cm) 96 100 110 110
Width (cm) 154 220 275 275
Filling width (cm) 148 214 269 269
Empty weight (kg) 250 325 495 665
Spread width (m) 9-18 10-24 12-54* 12-54
Output (kg/min) 10-230 10-320 10-320 10-320


* Depending on tertiliser type and type of vanes.
